RGB CV Power Repeater LED Controller PWM Signal Input 6A ×3CH Max 18A

Brand Name : LT-Series

Model Number : CL-LT-3030-6A

Certification : FCC, CE, ROHS, ISO 9001: 2008

Place of Origin : Guangdong China

MOQ : 10pcs

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 100000 pcs per month

Delivery Time : 3~12 Days

Packaging Details : L178×W48×H33(mm), 110g

item Type : CV Power Repeater (Data Amplifier)

Input signal : PWM

Input voltage : DC5V~DC24V

Max load current : 6A ×3CH Max 18A

Max output power : 90W/216W/432W(5V/12V/24V)

Dimension : L175×W44×H30(mm)

Weight (G.W) : 110g

Warranty : 5 Years

Contact Now

CL-LT-3030-6A 6A ×3CH Max 18A RGB CV Power Repeater LED Controller PWM Signal Input

LED Power repeater is suitable for power expansion fpr all of our company's power output type controller. It accepts PWM control, the control quantity of LED lights should be twice as much by adding one more power repeater, unlimited quantity of power repeater to be connected theoretically.

Signal input and output of LED power repeater have security protection function with photoelectricity isolation of 5KV.

Technical Information:

Input signal PWM
Input voltage DC5V~DC24V
Max load current 6A ×3CH Max 18A
Max output power 90W/216W/432W(5V/12V/24V)
working temperature -30℃~55℃
Dimension L175×W44×H30(mm)
Package Size L178×W48×H33(mm)
Weight (G.W) 110g

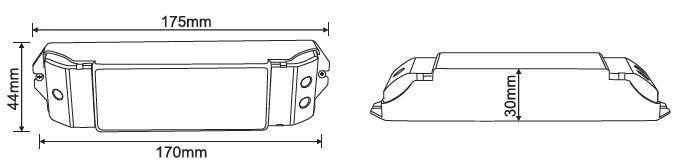

Product Size:

RGB CV Power Repeater LED Controller PWM Signal Input 6A ×3CH Max 18A

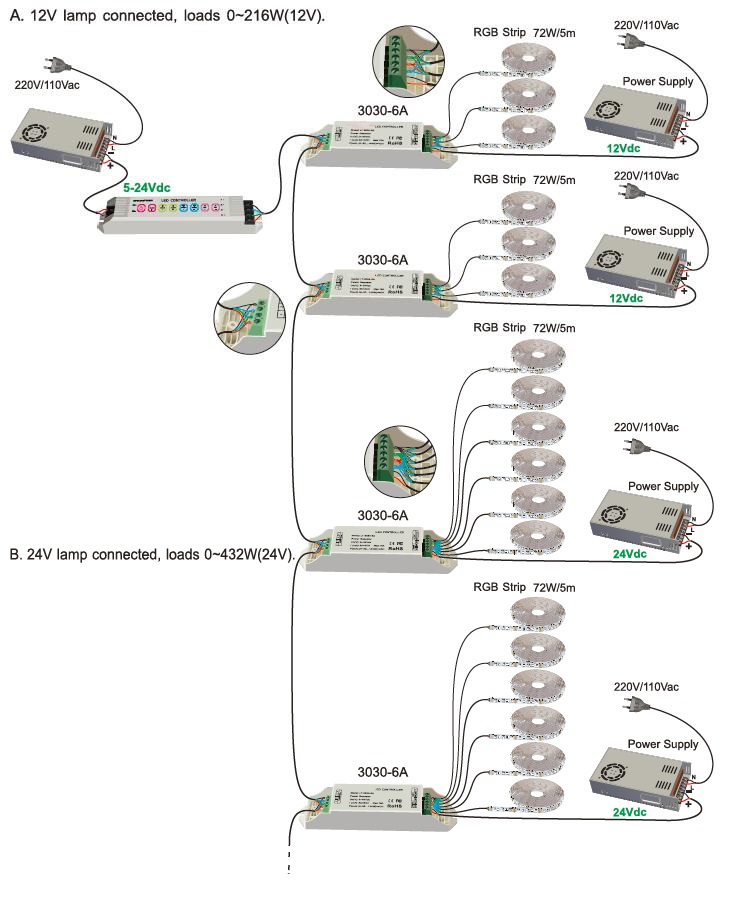

Typical Wiring Diagram:

RGB CV Power Repeater LED Controller PWM Signal Input 6A ×3CH Max 18A

RGB CV Power Repeater LED Controller PWM Signal Input 6A ×3CH Max 18A
